Three operating systems
Choose stacking, pocket, or bi-fold based on opening width, wall construction, and how panels should park.
Milgard · Door

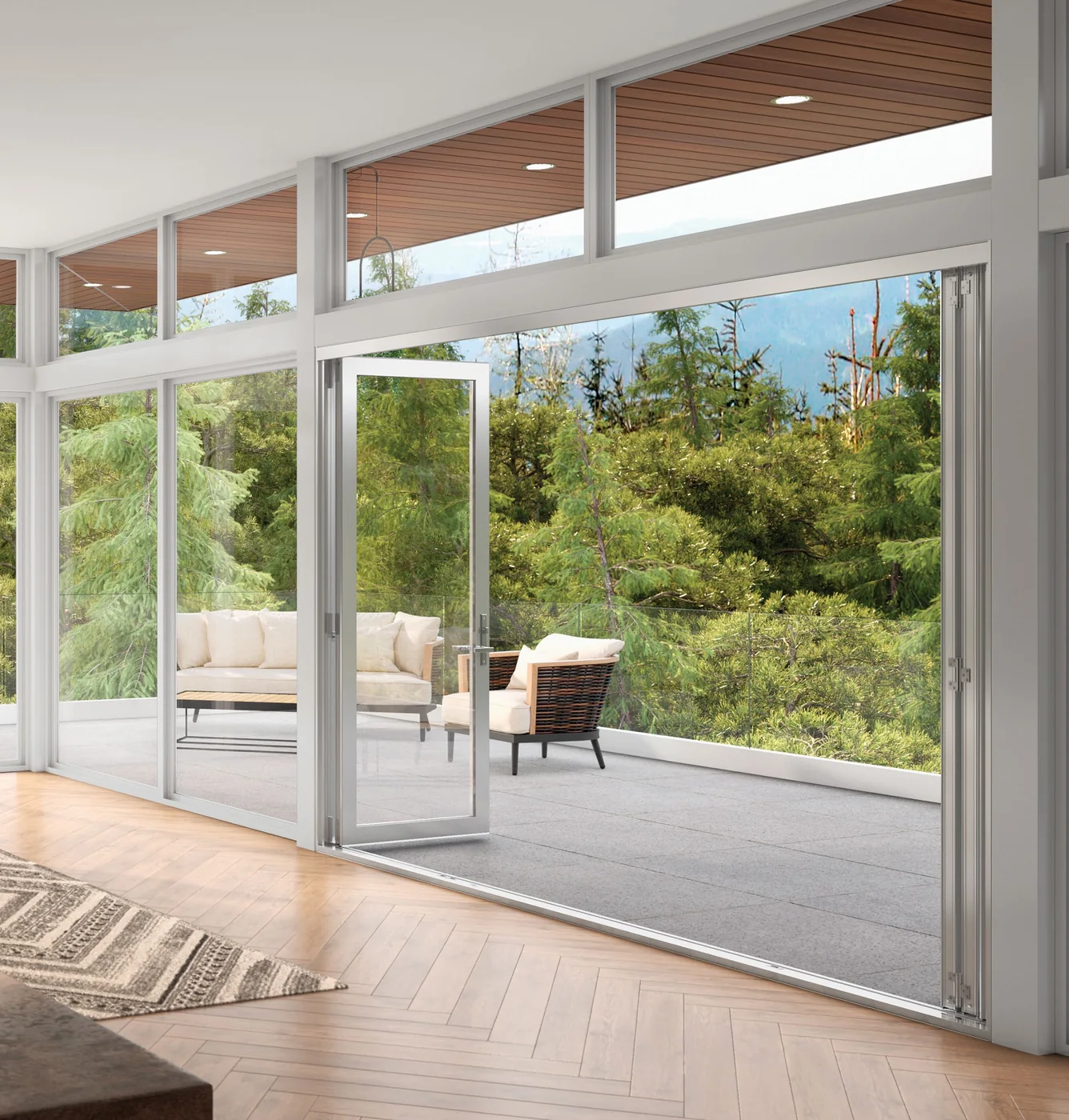

Milgard AX550 Moving Glass Walls
AX550 Moving Glass Walls is Milgard’s large-format aluminum door family for stacking, pocket, and bi-fold openings. Narrow frames and large panels are intended to create a stronger indoor-outdoor connection than a conventional patio door.
- Category
- Door
- Material
- aluminum
- Brand
- Milgard
- Product type
- Collection comparison
Product overview
Enough detail to make a useful shortlist.
The brochure documents multiple sill heights, five finish directions, and different maximums for each operating style. The system must be selected alongside the structural opening, drainage, floor build-up, screen, panel storage, and exposure details.
This page summarizes the documented product. Your final proposal should still name the exact size, configuration, glass, finish, hardware, and installation frame.
Large published sizes
Stacking reaches a published 20 by 10 feet in a four-panel layout; bi-fold reaches 17.5 by 10 feet in a five-panel layout.
Low or mid sill
Stacking and pocket systems list 3/4-inch low or 1-1/2-inch mid-height sills. Bi-fold lists 1-1/4-inch low or 2-1/4-inch mid-height sills.
Aluminum finish palette
Black, Dark Bronze Anodized, Tan, White, and Clear Anodized are documented as matching interior and exterior finishes.
Photos + details
See the product, not a brochure thumbnail.
Open each view to inspect installation photography, product renderings, and construction details from current manufacturer materials.
Specifications
The facts that should appear on the quote.
Manufacturer-published dimensions and capabilities are maximums or examples unless stated otherwise. The ordered configuration controls.
Published maximum sizing
- Stacking, 2 panel
- 10 ft wide by 10 ft high
- Stacking, 3 panel
- 15 ft wide by 10 ft high
- Stacking, 4 panel
- 20 ft wide by 10 ft high
- Pocket, 4 panel
- 18.75 ft wide by 10 ft high, excluding added pocket width
- Bi-fold, 5 panel
- 17.5 ft wide by 10 ft high
System choices
- Material
- Aluminum moving-glass-wall system
- Operating styles
- Stacking, pocket, and bi-fold
- Stacking and pocket sills
- 3/4-inch low or 1-1/2-inch mid-height
- Bi-fold sills
- 1-1/4-inch low or 2-1/4-inch mid-height
- Finishes
- Black, Dark Bronze Anodized, Tan, White, and Clear Anodized
Technical resources
Source documents, when you want the fine print.
Published sizes, sills, finishes, and configuration notes are transcribed from the 2024 AX550 manufacturer brochure. Current dealer availability and technical documents control.
Common questions
What usually needs clarification.
Which operating style opens the most wall?
Pocket panels disappear into the wall, while stacking panels remain visible and bi-fold panels park at the side. The best choice depends on available wall or parking space and weather detailing.
Does the published width include the wall pocket?
No. The AX550 brochure states that pocket-door width dimensions do not include the additional width required for the pocket.
Can every AX550 use a retractable screen?
No. The brochure limits retractable screens to eligible stacking or pocket doors with flush handles and select sizes.
