Sonoran windows installed in a contemporary desert home

Sonoran Series · Window

Sonoran Series Hybrid Windows

Sonoran is Modern Resolution’s Arizona-focused hybrid window offering. The documented construction combines a SunShield vinyl frame with Innergy fiberglass reinforcement in operating styles, aiming to keep the low-maintenance qualities of vinyl while strengthening critical frame and sash areas.

Category: Window
Material: hybrid
Brand: Sonoran Series
Product type: Named manufacturer series

Product overview

Enough detail to make a useful shortlist.

The brochure specifies a 3-1/2-inch frame depth, welded frame and sash construction, deep dust pockets, BetterVue screen mesh, and a Quad LoE-452+ glass package. Because Sonoran is locally supplied rather than a broad national catalog, every opening should be quoted from the current dealer order sheet.

This page summarizes the documented product. Your final proposal should still name the exact size, configuration, glass, finish, hardware, and installation frame.

Hybrid reinforcement

The brochure identifies contoured Innergy fiberglass I-beam reinforcement in single-hung and slider products.

Arizona glass package

Quad LoE-452+ is published with a 0.18 SHGC, 99% UV protection, and a 0.24 argon-fill U-factor for the listed double-pane configuration.

Welded vinyl construction

SunShield vinyl, welded frame and sash construction, deep pockets, and triple weather seals are documented.

Dealer-controlled specification

Sizes, exact styles, colors, hardware, and warranty terms are confirmed from the current Modern Resolution proposal and order sheet.

Photos + details

See the product, not a brochure thumbnail.

Open each view to inspect installation photography, product renderings, and construction details from current manufacturer materials.

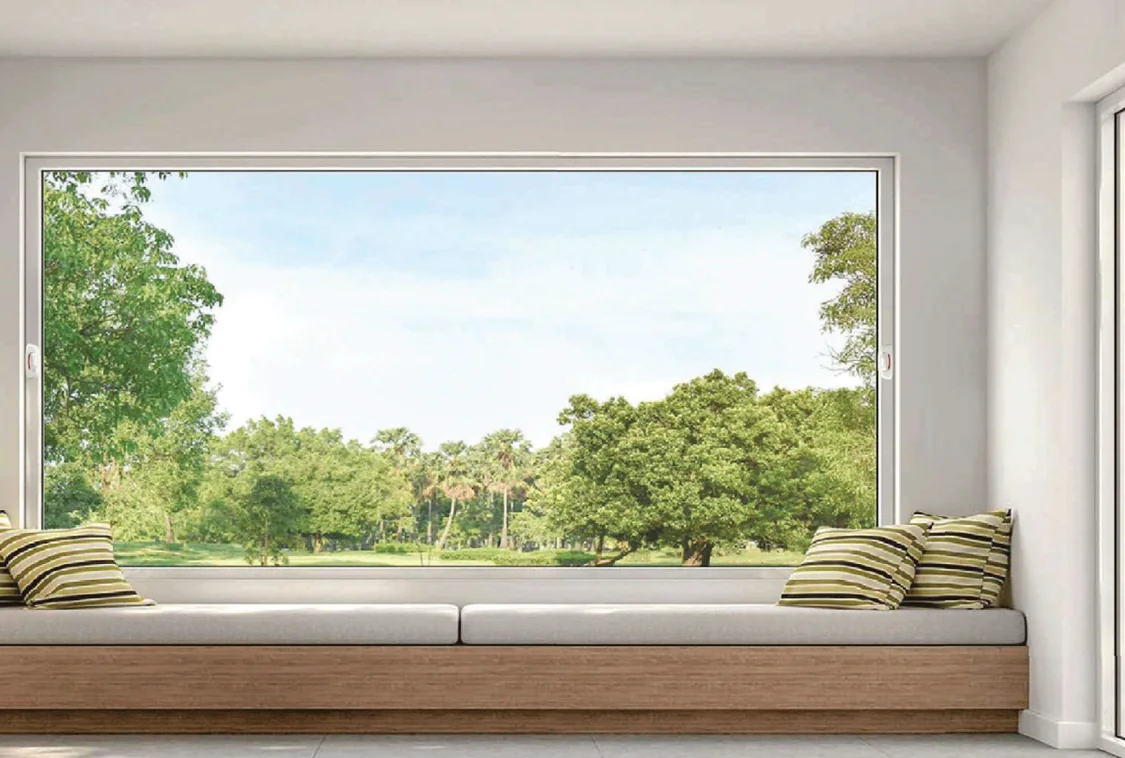

Sonoran window above a built-in window seat — A clean replacement-window application in a bright interior.

Sonoran window lock and handle housing — A clean hardware detail from the current Sonoran manufacturer brochure.

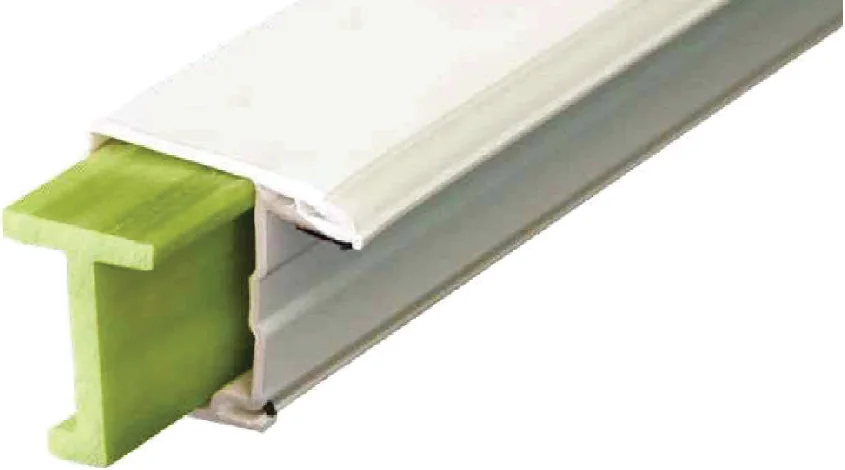

Innergy thermal reinforcement replaces conventional metal reinforcement in documented operating styles.

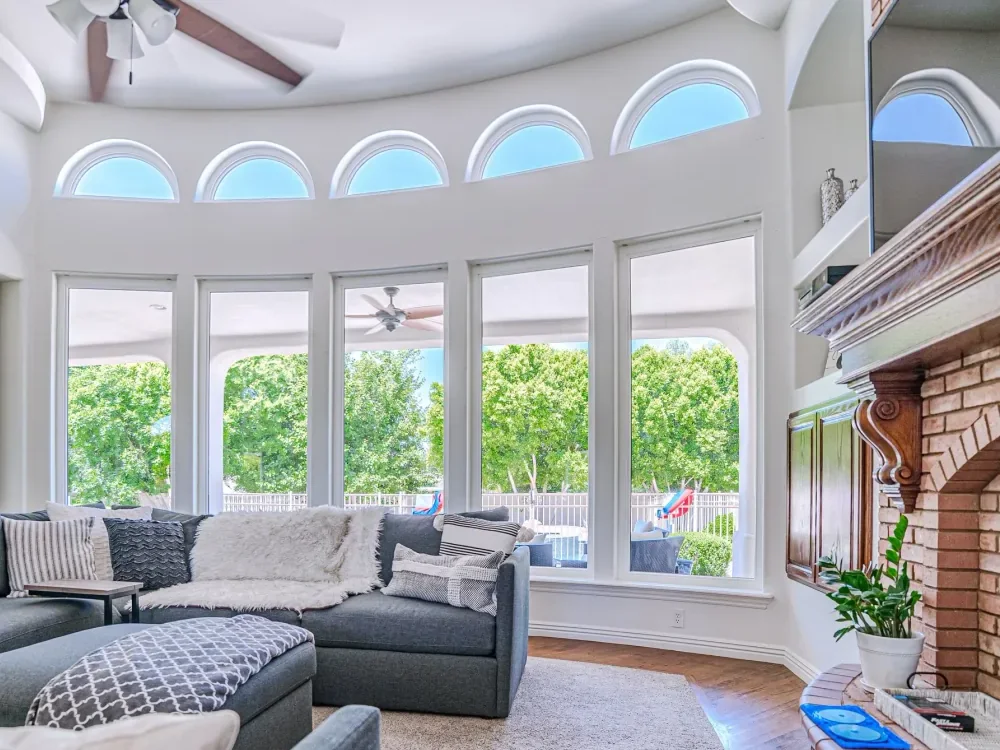

Curved wall of white Sonoran picture and specialty windows — Picture windows and half-round units coordinated in one bright residential installation.

Specifications

The facts that should appear on the quote.

Manufacturer-published dimensions and capabilities are maximums or examples unless stated otherwise. The ordered configuration controls.

Frame and sash

Frame depth: 3-1/2 inches
Primary frame material: SunShield vinyl
Reinforcement: Innergy contoured fiberglass I-beam in documented single-hung and slider styles
Construction: Welded frame and sash
Weather control: Deep dust pockets and triple weather seals
Screen: Roll-formed aluminum frame with BetterVue fiberglass mesh

Published glass package

Product: Quad LoE-452+ four-layer silver coating
UV protection: 99%
Visible transmittance: 52%
Exterior reflectance: 10%
Solar heat gain coefficient: 0.18
U-factor: 0.29 air fill; 0.24 argon fill

Published performance

Published Quad LoE-452+ values

These values are transcribed from the current Sonoran brochure’s listed double-pane glass comparison. The final whole-product NFRC label varies by window style, size, grids, spacer, and ordered options.

Measure	Published value	What it tells you
SHGC	0.18	Lower solar heat gain for hot exposures
U-factor with argon	0.24	Published insulating value for the listed glass package
Visible transmittance	52%	Amount of visible light transmitted
UV transmission	1%	Equivalent to 99% UV protection in the brochure
Exterior reflectance	10%	Published exterior visible-light reflection

Configurations + options

Choose in the right order.

Start with operation and opening conditions. Finish and hardware decisions come after the product is technically right.

Window styles

Confirm the current Sonoran dealer lineup and maximum sizes for each opening.

Single-hung
Horizontal slider
Fixed picture window
Coordinated geometric or combination units when available

Project selections

Exact size and installation frame
Interior and exterior color
Hardware finish
Glass and safety-glazing package
Screens and trim

Performance checks

NFRC label for the quoted configuration
Design pressure requirement for the opening
Solar exposure and SHGC target
Tempered-glass locations
Written warranty and labor coverage

Technical resources

Source documents, when you want the fine print.

Specifications are transcribed from Modern Resolution’s current Sonoran brochure. The final proposal, order sheet, NFRC label, and written warranty control the purchase.

Sonoran product brochureCurrent local supplier brochure with construction, glass, and performance details.Sonoran warranty pageCurrent supplier warranty terms. Review the written warranty issued with the order.

Common questions

What usually needs clarification.

What makes Sonoran a hybrid window?

The documented system combines a SunShield vinyl frame with contoured Innergy fiberglass reinforcement in the listed operating styles.

Is the published glass value the rating for every Sonoran window?

No. The brochure values describe a listed glass package. The final whole-window NFRC label depends on window style, size, grids, spacers, and other options.

Which styles and colors can I order?

Availability is controlled by the current local dealer order sheet. We verify the style, maximum size, color pairing, hardware, screen, and glass package before pricing.
